Lens Lite for Android

Veryfi Lens Lite is a lightweight version of Veryfi Lens SDK intended for Instant Apps.

Obtaining Client ID and User Keys

• You need two sets of credentials:

  • Maven credentials to download the SDK (Maven username and password)
  • Access credentials to access to the Veryfi API (Client ID, API key, username, URL)

• If you don't have an account with Veryfi, please register here: https://app.veryfi.com/signup/api/

• In the Veryfi hub, go to Settings > Keys:

  • In the API Auth Credentials section, you can get your API credentials.
  • In the Lens: Maven (Android) section you can create your Maven credentials.

• Add your Maven credentials to your system environment (e.g., ~/.zshrc). Replace [MAVEN_USERNAME] and [MAVEN_PASSWORD] with the credentials obtained in the previous step.

  export MAVEN_VERYFI_USERNAME=[USERNAME]
  export MAVEN_VERYFI_PASSWORD=[PASSWORD]

Create an Instant App module

• Create a new module for your existing app in Android Studio: File > New > New Module...
• Select a Phone & Tablet module and fill in the required fields.
• IMPORTANT: Use the same applicationId as your full app for your Instant App (applicationId in app/build.gradle)
• In the new module's AndroidManifest.xml file:
  • Set the target sandbox.
  • Declare your module as an instant-enabled app.
  • Add your launch activity and associate an App Link to open it from a URL (More info: Create App Links for Instant Apps).
  • Add INSTANT_APP_FOREGROUND_SERVICE permission.
  • Add a default-url.

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    xmlns:dist="http://schemas.android.com/apk/distribution"
    android:targetSandboxVersion="2">

    <dist:module dist:instant="true" />

    <uses-feature android:name="android.hardware.sensor.light" android:required="false" />
    <uses-feature android:name="android.hardware.camera.any" android:required="false" />
    <uses-feature android:name="android.hardware.camera" android:required="false" />
    <uses-feature android:name="android.hardware.camera.autofocus" android:required="false" />
    <uses-feature android:name="android.hardware.camera.flash" android:required="false" />
    <uses-permission android:name="android.permission.CAMERA" />
    <uses-permission android:name="android.permission.INSTANT_APP_FOREGROUND_SERVICE" />
    <uses-permission android:name="${applicationId}.DYNAMIC_RECEIVER_NOT_EXPORTED_PERMISSION" tools:node="remove" />
    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" tools:node="remove" />
    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" tools:node="remove" />

    <application ...>

        <activity android:name=".MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
            <intent-filter android:autoVerify="true">
                <action android:name="android.intent.action.VIEW" />
                <category android:name="android.intent.category.DEFAULT" />
                <category android:name="android.intent.category.BROWSABLE" />
                <data android:scheme="http" />
                <data android:scheme="https" />
                <data android:host="your.domain.com" />
                <data android:pathPrefix="/instantapp/" />
            </intent-filter>
            <meta-data
                android:name="default-url"
                android:value="https://your.domain.com/instantapp/" />
        </activity>

    </application>

</manifest>

• In the new module’s build.gradle file:

android {
    namespace 'YOUR_PACKAGE_NAME_HERE'
    defaultConfig {
        applicationId "YOUR_PACKAGE_NAME_HERE"
        minSdk 26
        targetSdk 35
        ...
        ndk {
            abiFilters "armeabi-v7a", "arm64-v8a"
        }
    }
    buildTypes {
        release {
            minifyEnabled true
            ...
        }
    }
    androidResources {
        noCompress += 'veryfi'
    }
    ...

}

repositories {
    mavenCentral()
    maven {
        url "https://nexus.veryfi.com/repository/maven-releases/"
        credentials {
            username System.getenv("MAVEN_VERYFI_USERNAME")
            password System.getenv("MAVEN_VERYFI_PASSWORD")
        }
        authentication {
            basic(BasicAuthentication)
        }
    }
}

dependencies {
  implementation "com.veryfi.lens:veryfi-lens-lite-sdk:2.1.0.28"
  implementation "com.google.android.gms:play-services-instantapps:18.1.0"
  ...
}

• The minimum SDK version is 26, and only armeabi-v7a and arm64-v8a ABIs are supported.

• Publish an assetlinks.json file on the website corresponding to your App Link (e.g., https://your.domain.com/.well-known/assetlinks.json)

[
  {
    "relation": ["delegate_permission/common.handle_all_urls"],
    "target": {
      "namespace": "android_app",
      "package_name": "YOUR_PACKAGE_NAME_HERE",
      "sha256_cert_fingerprints": ["XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX:XX"]
    }
  }
]

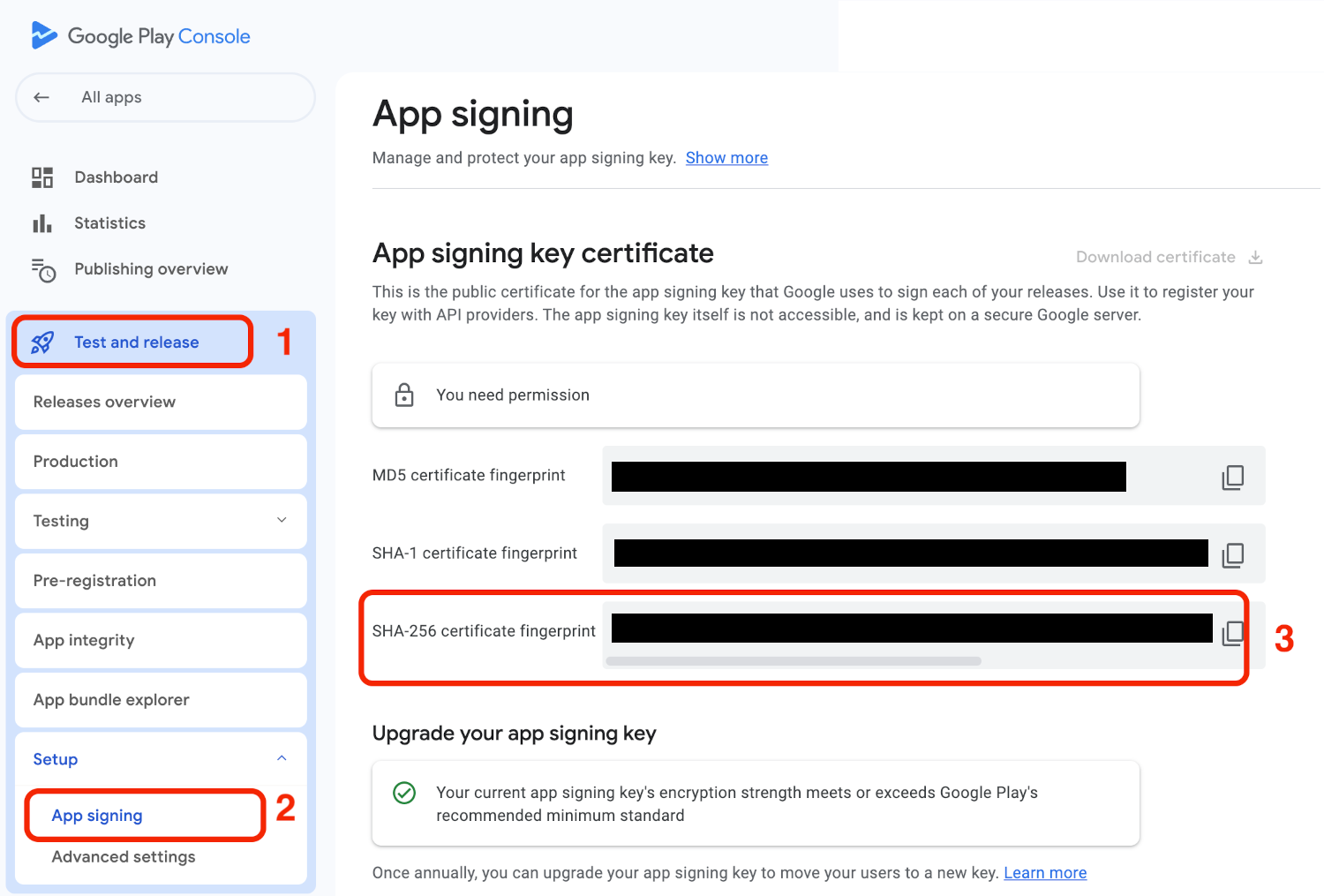

• To get the SHA-256 certificate fingerprint, go to the Google Play Console and select your app > Test and release > Setup > App signing, then copy the SHA-256 certificate fingerprint under the App signing key certificate section:

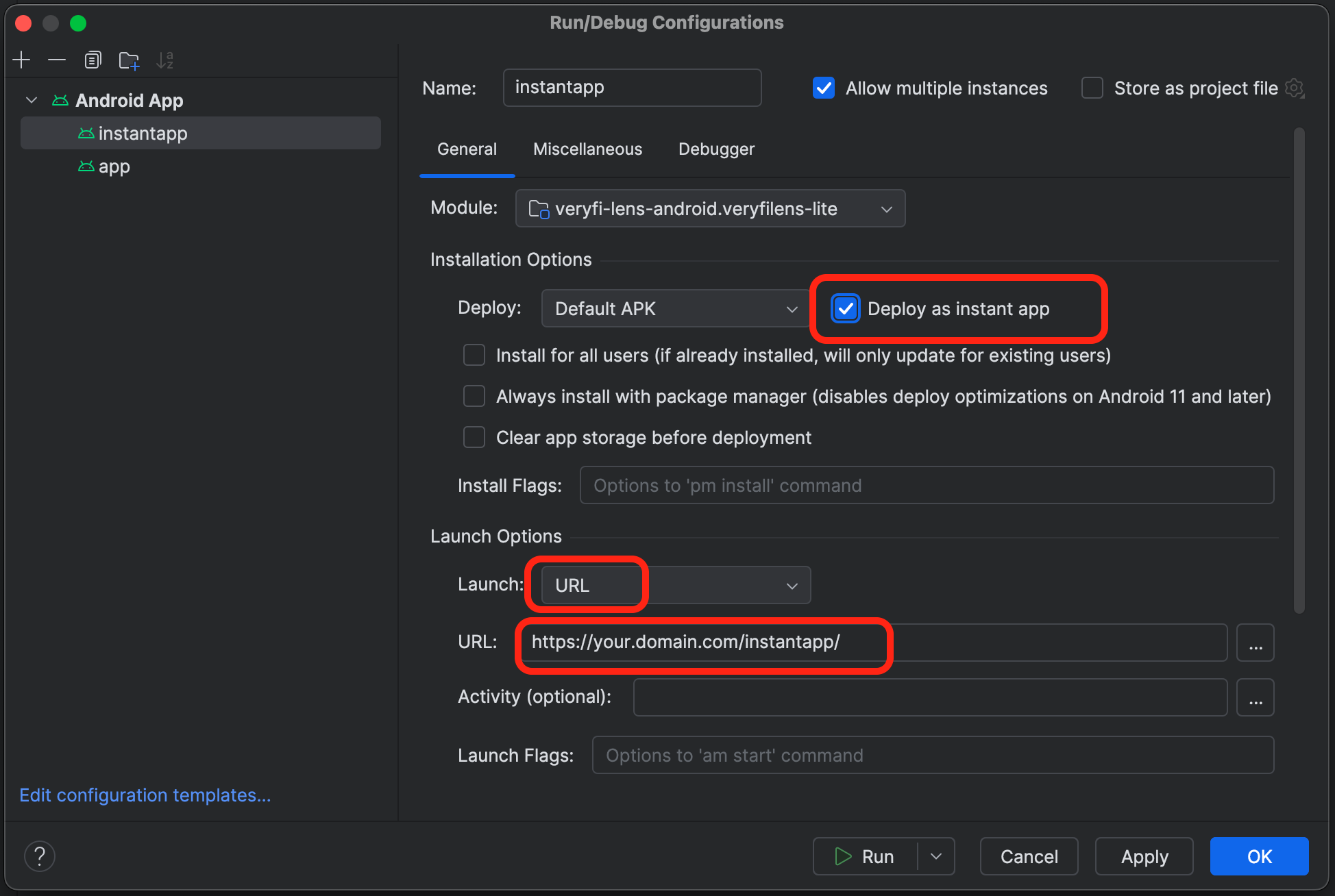

• To run your Instant App, modify your existing run/debug configuration as follows:

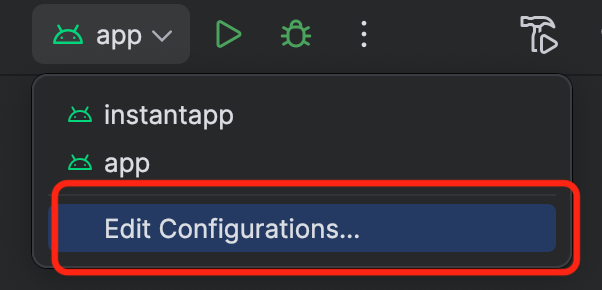

  • Select Run > Edit Configurations from the menu bar.
  • In the left panel, select your Instant App module.
  • Enable Deploy as instant app.
  • Optionally, to launch the Instant App from an App Link with parameters: select URL in the Launch dropdown, and add your URL (e.g., https://your.domain.com/instantapp/?param1=value1&param2=value2).

• Implement your launch activity like a normal app, following the documentation: https://docs.veryfi.com/lens/mobile/receipts/initialization/

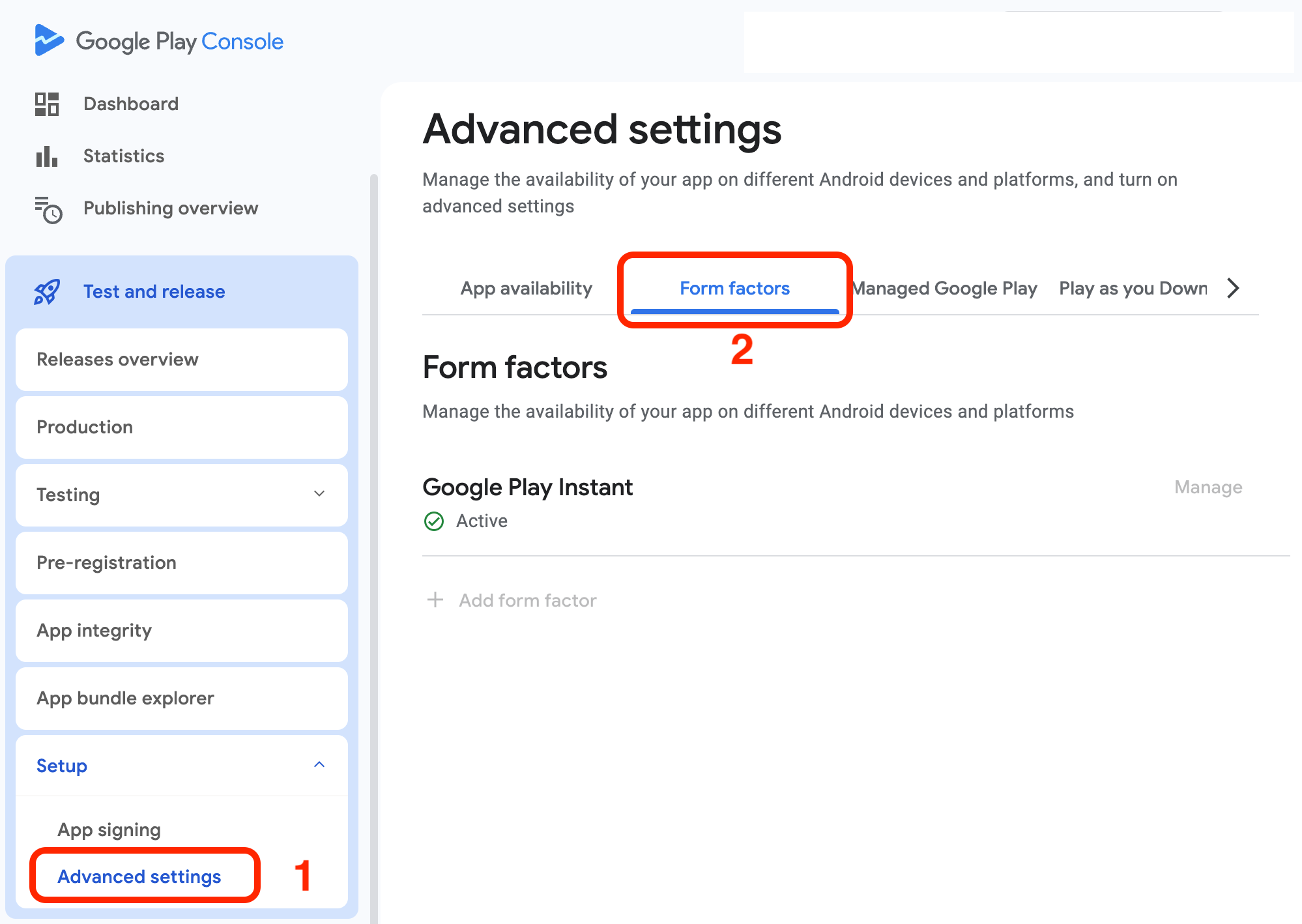

• When your Instant App is ready for publishing, create a Google Play Instant form factor in the Google Play Console: Test and release > Setup > Advanced settings > Form factors

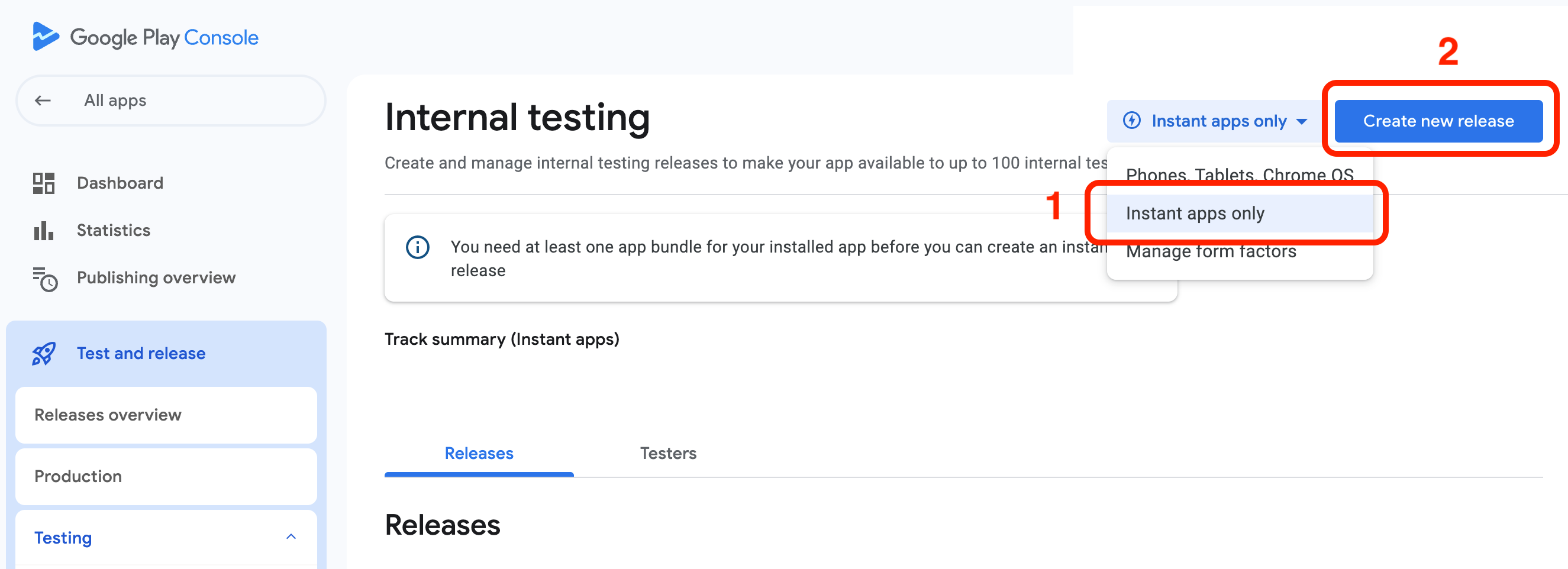

• Before creating a new release, select the Instant apps only form factor:

• For more information on Instant Apps: Create an instant-enabled app bundle
